DEBUNKING THE MYTH THAT INDUCTION IS MORE EFFICIENT THAN ELECTRIC COIL
The U.S. Department of Energy (DOE) has estimated electric coil efficiency as about 74-77% and induction at 84%.1 Utility studies have shown similar results of about 80-81% efficiency for induction.2 (As an aside, natural gas stoves are less efficient than electric stoves at the point of use. When you use a gas stove with cookware, about 60% of the flame’s energy is wasted as heat that raises the temperature of your kitchen air if it isn’t vented; however if you consider the entire system from power plant to stove, gas is not necessarily less efficient than electric coil or induction.)3
However, there have been new testing protocols considered by the DOE that find that induction stoves are no more efficient than electric coil stoves.4 Another recent study conducted by an industry research institute found that coil can be more energy-efficient than induction when boiling water in pots that fully cover the diameter of the coil.5
For my own test, I boil water on two portable burners (one electric coil, the other induction), at the same wattage, and time which pot boiled faster. I measure power usage via energy monitors. Being a little over sea level, I decided that I define “boiling” as reaching 211 degrees Fahrenheit (99.44 degrees Celsius).

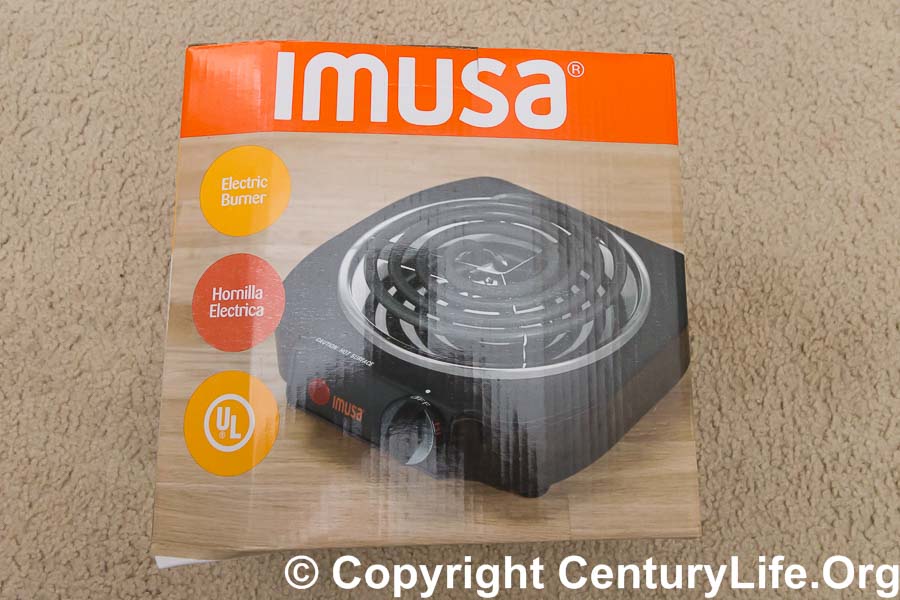

My testing setup consisted of a IMUSA USA GAU-80305 1100W Electric Single Burner, Black, a Vollrath Mirage Pro 59500P 1800W portable induction cooker, a pair of Sitram Profiserie 4-Quart Half Stockpots (I review the Sitram Profiserie series here), a pair of P3 P4400 Kill A Watt Electricity Usage Monitors, a Polder 898-95 Clock, Timer and Stopwatch, Black, and a Fieldpiece ST4 Dual Temperature Meter.

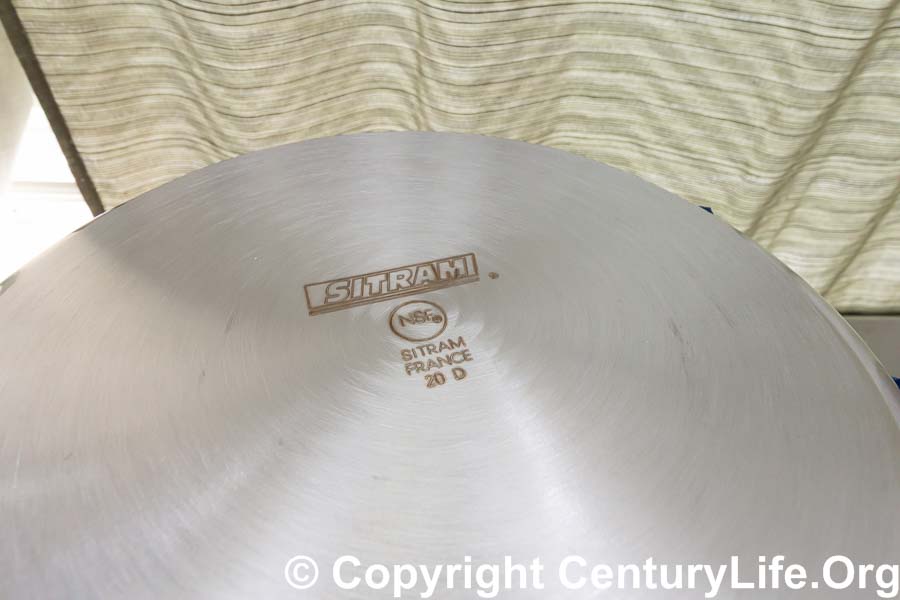

I poured 2.545 kg (about 2.7 quarts) of water into each pot, splashing water back and forth between the two until they each weighed 3,685 grams (8.124 pounds), uncovered. (Each pot weighed 1140 grams empty.) I let them sit, covered for about 18 hours to make sure they were the same temperature as the room temperature at the start of my test (78 degrees Fahrenheit). Both pots still weighed 3,685 grams uncovered the next day (my weigh scale rounds to the nearest 5 grams). The bottom disc diameter of each pot exceeded the coil diameter by about an inch. I carefully centered each pot over the center of each burner.

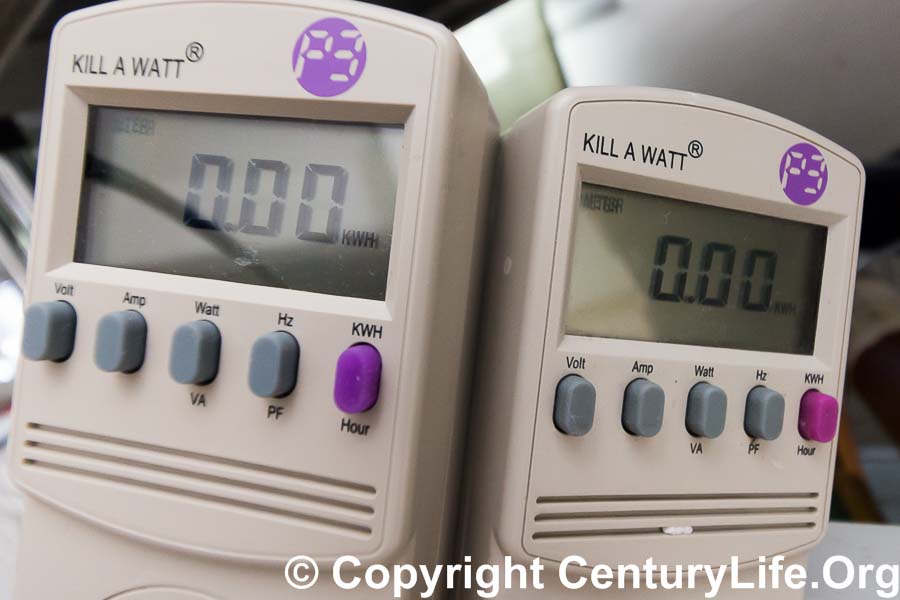

The IMUSA coil burner was rated for 1100 watts, but the coil burner on “high” drew only about 1000 watts. Unlike cheaper coil burners, the IMUSA takes a long time before its thermal protection kicks in to cycle on and off; it maintained a fairly steady wattage throughout the test (averaging 991W). To mimic the IMUSA’s power draw, I set the Vollrath to 50 percent power, which drew about the same wattage (averaging 984W). Both were plugged into identical Kill-A-Watt energy monitors, which plugged into identical heavy-duty extension cords drawing from 120-volt (15 amp) circuits.

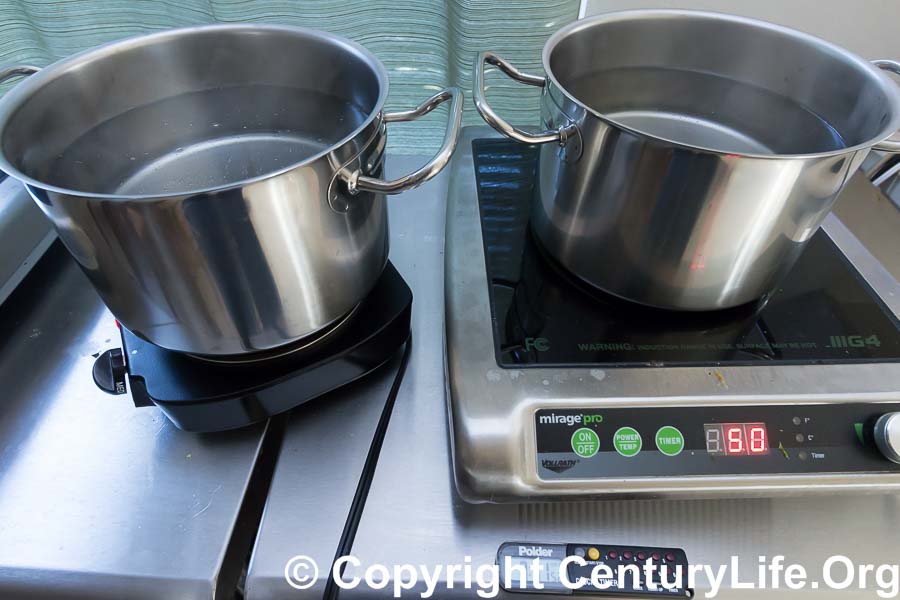

Throughout the test, I took temperature readings at the center of the water within each pot. There is some bumpiness in the data, which I attribute to fluctuations as the convection currents got going and rounding error (I rounded to the nearest degree Fahrenheit). Both pots boiled uncovered in parallel (right next to each other, simultaneously), eliminating any temperature or humidity differences that could result if I compared their boiling times sequentially.
RESULTS PART 1
I used portable, 120-volt units of each type, and not full-blown 220+ volt cooktops and ranges, but my results were consistent with those of EPRI, DOE, and PG&E/Fisher-Nickel.6
The pot of water on the coil got off to a slower start compared to the pot of water on the induction. The coil pot caught up to the induction pot after 10 minutes (151F vs. 151F), and the coil pot pulled ahead after 15 minutes (181F vs. 180F). After 23 minutes, the coil pot achieved 211F using 0.38 kWh of energy. After 25 minutes, the induction pot achieved 211F using 0.41 kWh of energy. Those numbers mean that the coil burner used 991 watts of power on average during its 23 minutes of heating, and the induction burner used 984 watts of power on average during its 25 minutes of heating.7
These test results seem to indicate that in the short run, induction is more efficient than electric coil. However, in long run, electric coil is at least as efficient as induction.
SECOND TEST RESULTS
Common sense holds that induction should always get off to a faster start than coil. Coil stoves need to heat the mass of the pot and the water and the coil, whereas induction stoves need to heat just the pot and the water.
The first test’s results showed little impact on coil from having to heat up the coil in addition to the pot and water. I reasoned that it was because the heat capacity of the coil was insignificant compared to the heat capacity of the water. Consider that for my first test, I used 2.545 kg of water, which holds about as much heat as a whopping 24 kg of iron.
In order to more clearly show the impact of having to heat a coil along with the pot of water, I ran the test again. This time, I used 0.455 kg (about 2 cups) of water, down from 2.545 kg (about 2.7 quarts). The room temperature at the time was 74F and I fine-tuned the induction stove to use the same average wattage of the coil. The results are below:
The induction pot boiled in five minutes. The electric coil pot boiled after 8 minutes and was much slower to get hot. In fact the coil pot gained only 4 degrees Fahrenheit after a full minute of heating, because so much energy was going towards heating the coil and the pot instead of the water.8
The coil’s sluggish response works both ways: even after I turned off the electric coil burner, the coil pot continued to boil for several seconds. This sluggish response (upward and downward) makes electric coil more annoying to use than gas and induction; with those types of stoves, turning the burner up or down results in nearly instant response in the pot.

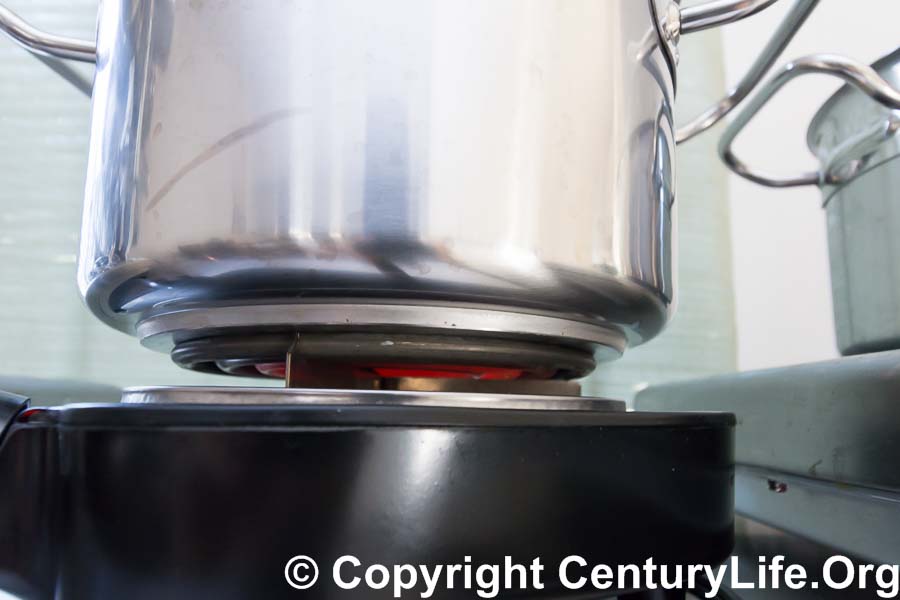

Real-life coil efficiency may be slightly lower than tested. In my tests, the pot-to-coil contact was especially good because I was using a relatively new, flat pot with a brand new, flat coil. It’s possible that scratches or accumulated residue would result in worse pot-to-coil contact and therefore worse efficiency. Furthermore if the coil is bigger than the pot bottom’s diameter, that would also decrease efficiency. Therefore my results represent a close to best-case scenario for coil. (An induction pot would have similar issues with regard to pot flatness, but scratches wouldn’t matter, and you can count on the glass to be flat and free of residue, since that surface is easy to clean.) Editor’s Note September 2016: I have since tested the same pot after it accumulated several more scratches, and it was not slower to boil.
Induction doesn’t have to heat a coil in addition to the pot and food, so induction is faster and more efficient than coil for quick cooking tasks. However, coil is slightly more efficient than induction for long cooking tasks, like boiling large amounts of water. In those cases, coil has enough time to catch up and pass induction, despite coil’s slow start. Most people cook using a mixture of short and long cooking tasks, so you can think of coil and induction as having equal efficiency for most people.
That said, efficiency isn’t everything. Induction still means quicker response, faster heating for short tasks, more accurate temperature target and timer controls, easier cleanup, and better safety since the glass doesn’t heat up as much as the coil.
On the other hand, coil is usually much cheaper and works with all type of cookware (not just those with magnetic bottoms).
Whatever you do, avoid electric radiant stoves (electric resistance coils underneath glass). Those electric stoves give you the worst of both worlds: they are more expensive than coil, heat up more slowly and less efficiently than either coil or induction, and the glass reaches higher temperatures than glass does with induction–which means food can burn on more easily and result in difficult cleanup.
- TECHNICAL SUPPORT DOCUMENT FOR RESIDENTIAL COOKING PRODUCTS, VOLUME 2: POTENTIAL IMPACT OF ALTERNATIVE EFFICIENCY LEVELS FOR RESIDENTIAL COOKING PRODUCTS (Docket Number EE-RM-S-97-700) by Lawrence Berkeley National Laboratory, Environmental Energy Technologies Division Technology and Market Assessment Group, Accessed at http://www1.eere.energy.gov/buildings/appliance_standards/residential/pdfs/cookgtsd.pdf ↩
- http://www.fishnick.com/publications/appliancereports/rangetops/ ↩
- Note that systemwide gas efficiency is competitive with electric stoves. A modern gas-fired combined-cycle electric power plant can be about 55-60% efficient, but not all gas-fired electric power plants are that efficient, and there are also line losses due to having to transport electricity long distances, so you’re already down to ~50% efficiency by the electricity enters your household. An 80%-efficient electric stove means that 20% of that ~50% is wasted as heat, so the system-wide efficiency of electric stoves, using electricity derived from natural gas, is ~40%. In contrast, natural gas pipelines are extremely efficient at transporting natural gas, so almost all the inefficiency occurs at the burner tip, where burning gas is coincidentally also ~40% efficient. However, not all electricity needs to be made by burning gas to spin a turbine. Coal and oil may be burned to produce electricity, and those plants have efficiencies closer to 30-35% than 55-60%.
Complication: you can make electricity by tapping into geothermal, nuclear, wind, solar, tidal, wave, hydro, and other forms of power that may be more sustainable than burning gas, coal, or oil. It can be difficult to measure operational energy efficiency for some of those power sources, however.
As of 2014, the U.S. electricity generation share was about 39% coal, 27% gas, 19% nuclear, 6% hydropower, 7% other renewables (biomass, goethermal, solar, and wind), 1% oil, and less than 1% from other sources. There were substantial geographic dissimilarities, however. For instance, the Pacific Northwest gets most of its power from hydropower.
Therefore gas stoves are about as efficient as electric stoves, only if you assume gas-fired electric power plants, which is a bad assumption. But good luck trying to figure out what the overall impact and efficiency of all power plant types. For instance, hydropower affects the environment and wildlife, such as getting in the way of fish migration. How does one measure that?
Even if we look at just the bill impact to you, as a residential end-user, there are huge regional and other variations on the price of electricity or gas that make it hard to generalize about bill impacts. Even within the same region, many utilities charge based on “tiers,” a crude sliding scale where the first block of electricity is sold cheap, the next block is sold at a higher price, and so on until you reach the highest tier. Tiering is intended to promote energy conservation and efficiency. There are even more complications but we’ll leave it at that; the point is that it’s hard to generalize. But you shouldn’t worry much about stovetop efficiency in the first place, considering that only ~4% of typical U.S. household energy consumption is related to the kitchen (excluding the refrigerator), split between the microwave, oven, appliances like toasters and blenders, and stovetops. By far the largest users of electricity are the fridge ↩
- http://energy.gov/sites/prod/files/2014/11/f19/Conv_Cooking_Products_TP_SNOPR.pdf; thanks to chem at chow for bringing this up. ↩
- http://aceee.org/files/proceedings/2014/data/papers/9-702.pdf ↩
- http://energy.gov/sites/prod/files/2014/11/f19/Conv_Cooking_Products_TP_SNOPR.pdf and http://aceee.org/files/proceedings/2014/data/papers/9-702.pdf and http://www.fishnick.com/publications/appliancereports/rangetops/. ↩
- 0.38 * 1000 * 60 / 23 = 991 watts; 0.41 * 1000 * 60 / 25 = 984 watts. ↩
- Water temperature was very hard to measure with so little water; there just wasn’t much room for convection currents to distribute the heat that evenly. Thus both pots hot-spotted–the center part of the pot was a little cooler than the rest of the pot, yet I had to keep measuring the water at the center to be consistent with the previous test. For purposes of this test, 209F measured at the center of the pot = boiling. The induction stove reached that after 5 minutes; it took 8 minutes for the coil stove, though it did reach 207F after 7 minutes. The induction pot’s water reached 200F after 4 minutes and zero seconds; the coil pot’s water reached 200F after about 5 minutes and 30 seconds. ↩
